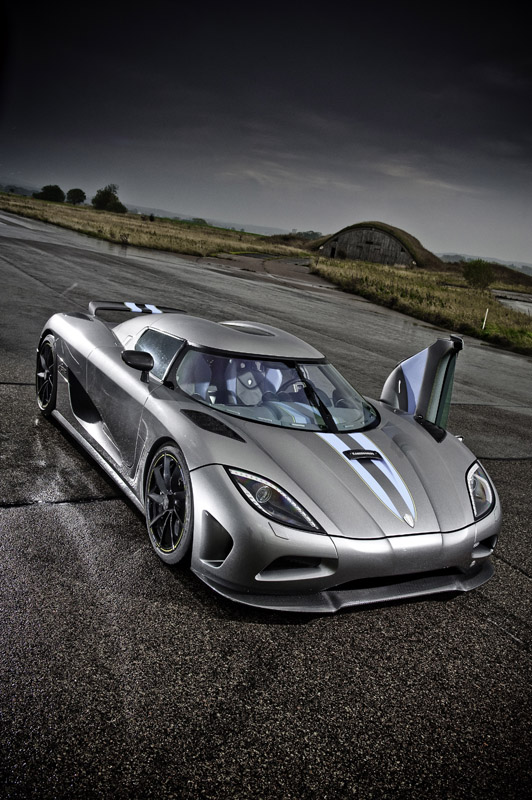

Koenigsegg Agera

A Swedish supercar with a Viking’s axe.

Fifteen years ago, Christian von Koenigsegg developed his first supercar concept, the Koenigsegg CC. Koenigsegg’s latest creation, the Agera, fulfills the principals of performance and innovation first established by the CC, combining superior performance, state-of-the-art technology, and visionary styling.

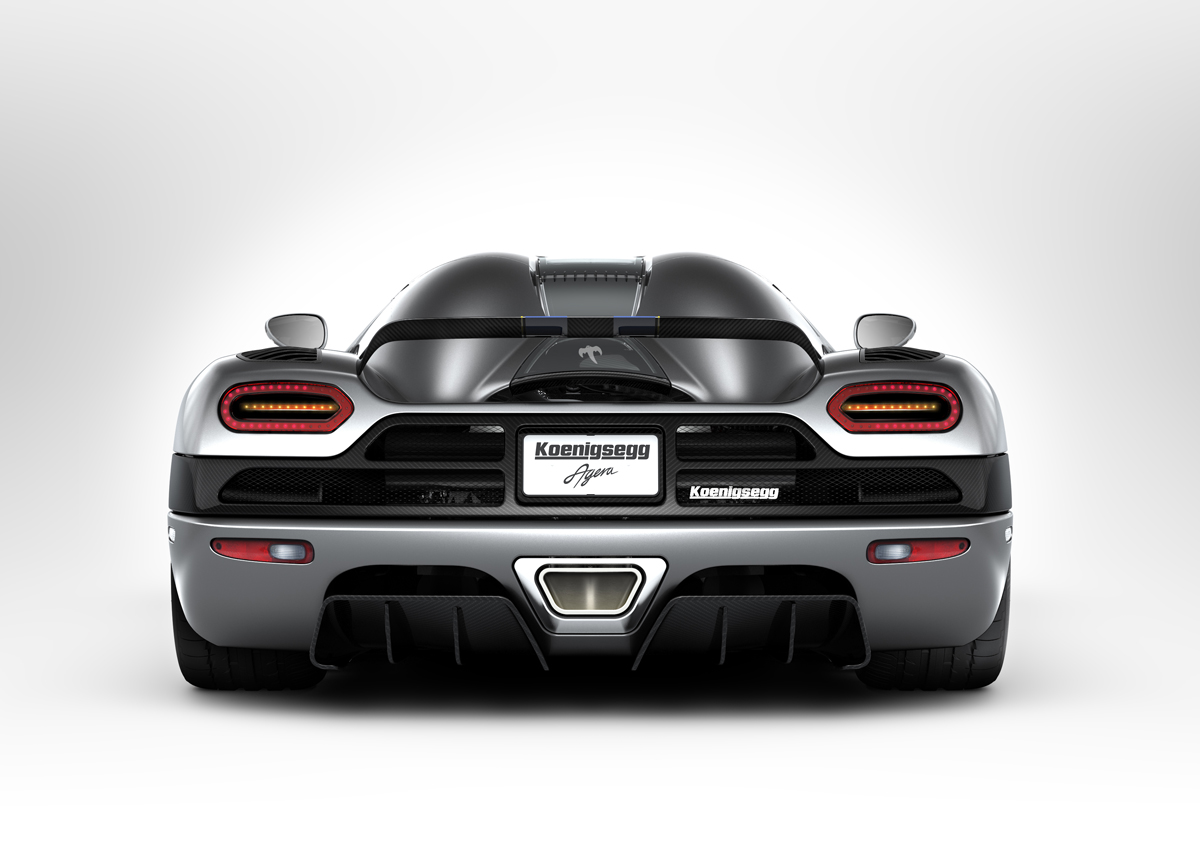

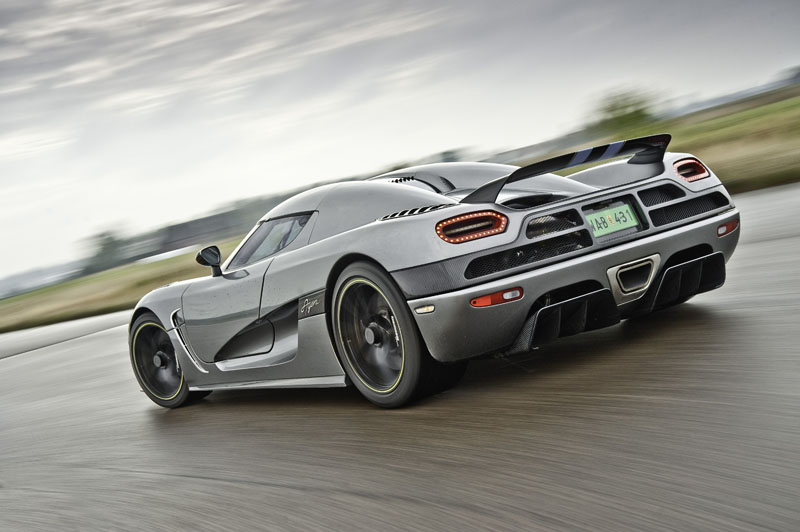

The Koenigsegg Agera is a futuristic evolution of the classic Koenigsegg design that started with the CC. Using the latest in carbon fiber technology, the body of the Agera is made from both pre-impregnated carbon fiber/Kevlar and sandwich reinforcements. The chassis is constructed from a carbon fiber and aluminum honeycomb contributing to a light weight of only 2832 pounds. The Agera achieves a drag coefficient of 0.35, and produces over 660 pounds of downforce at 155 mph. Underneath the rear of the chassis are Venturi tunnels which create a low pressure area under the car, keeping it planted to the tarmac. Optionally, the Koenigsegg Agera can be ordered with a robotized rear wing and a completely clear-coated carbon fiber body – because you can never have enough carbon fiber.

Koenigsegg Agera

In collaboration with Michelin, specially developed unidirectional tires with an asymmetric tread pattern are used to contribute to a maximum lateral G-force of 1.6 G. Measuring 255/35 19 at the front and 335/30 20 at the rear, the tires are fitted to center locking forged aluminum wheels. The wheels have been designed to generate a vortex, which reduces the aerodynamic drag around the wheels while the Koenigsegg Agera is in motion. Behind the wheels are large 6-piston ceramic brakes featuring an adjustable ABS system for optimum braking performance.

Mounted behind the driver in the Koenigsegg Agera is a 4.7-liter V-8 force-fed by two wailing turbo superchargers. Push the pedal to the floor and the Agera becomes a raging Berserker, producing a furious 910 horsepower and 811 lb-ft of tire-shredding torque. The powerful V-8 features a patented response charge system for increased response as 1.5 BAR (21.76 PSI) of boost is forced into the engine. A tig-welded ceramic-coated inconell exhaust system manifold with merge collector sends a battle cry from the center-mounted exhaust. The roaring Agera sprints to 62 mph in just 3.1 seconds, and reaches 124 mph after 8.9 seconds. Top speed is expected to be in excess of 245 mph – look out Veyron this Swede knows speed.

Koenigsegg Agera

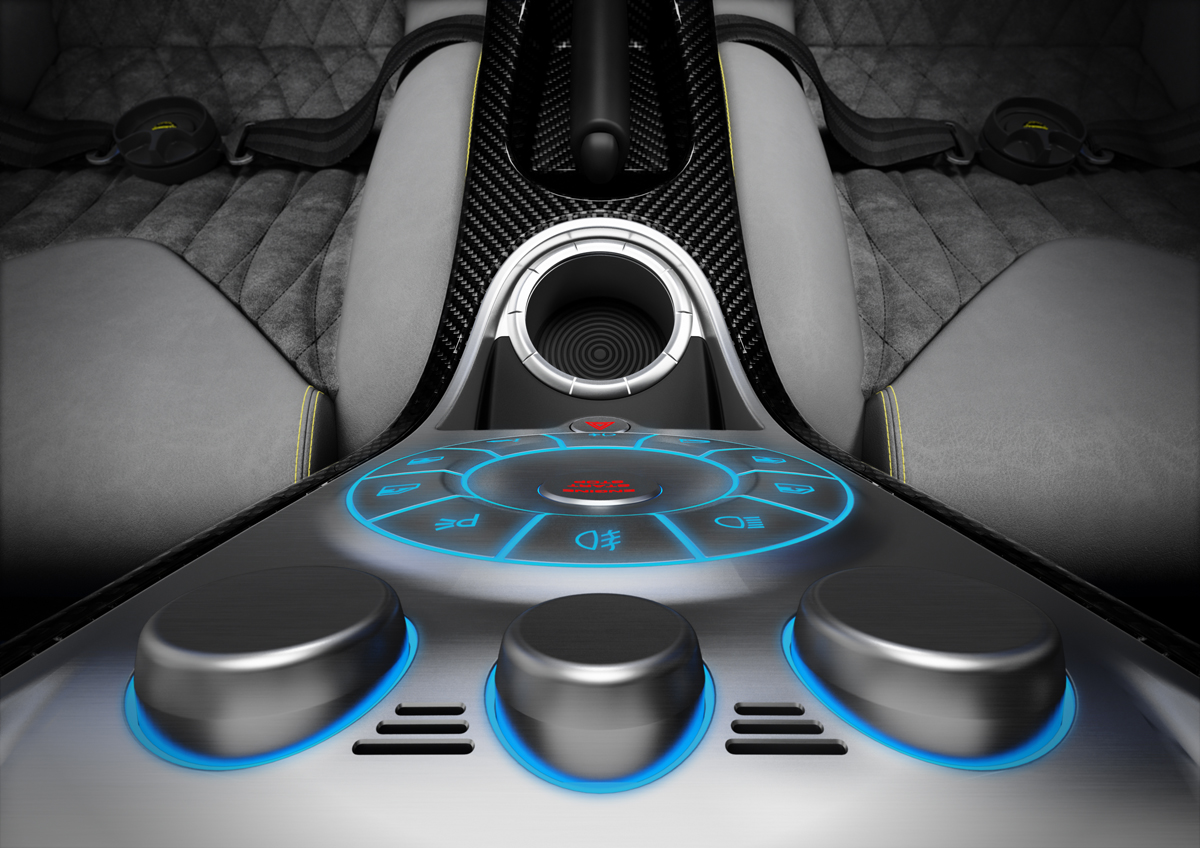

Inside the Koenigsegg Agera is a clean and intelligent sci-fi interior. For the first time in the automotive industry, a new type of Ghost light interior illumination is used. Developed by Koenigsegg, invisible nanotubes shine light through billet aluminum buttons for superb visibility. A new multi-info cluster shows brake horsepower, boost pressure, speed, and gear selection in a cutting-edge display. For additional information and functions, an infotainment display features navigation, a G-force meter, lap times, and a compass. A carbon fiber center console and center and tunnel assembly contributes to the sporty character, while Koenigsegg Agera stitching and seams provide beauty and comfort.

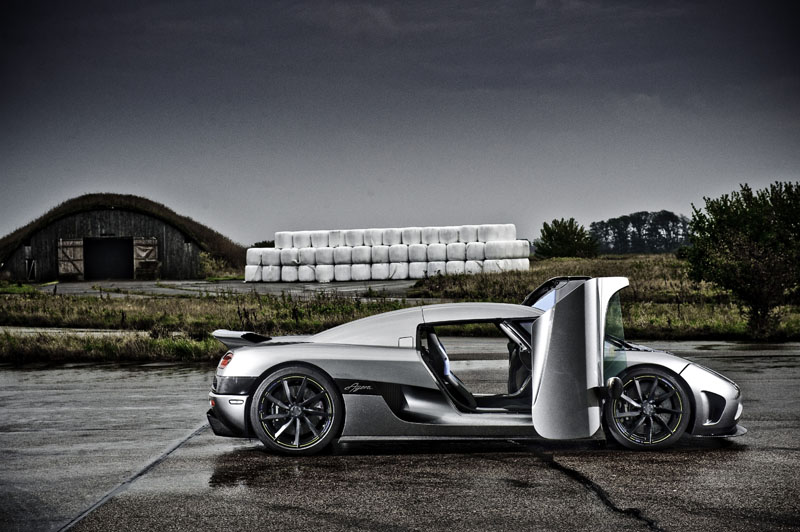

The Koenigsegg Agera will be produced alongside the CCX and CCXR, and feature the Koenigsegg doors and detachable hardtop. Pricing for the Agera has not been released and will be announced at a later date.

Koenigsegg Agera Specifications


Displacement: 4.7 liters
No of Cylinders: V-8
Valves Per Cylinder: 4
Construction: Aluminum
Compression: 8.9:1
Fuel Injection: Sequential, multipoint
Engine Lubrication: Dry sump
Aspiration: Twin turbo superchargers
Maximum Boost Pressure: 1.5 BAR (21.76 PSI)
Intake Manifold: Carbon fiber with optimized intake tracts
Exhaust: Tig-welded ceramic-coated inconell exhaust system manifold with merge collector
Emission levels: Euro IV
Weight: 380.6 lbs.
Power output: 910 hp at 6850 rpm-redline @ 7250 rpm
Torque: over 737 lb-ft. from 2860 to 6170 rpm
Max Torque: 811 lb-ft at 5100 rpm


Braking 62 mph to 0: 100 feet
Acceleration 0-100 km/h (0-62 mph): 3.1 seconds
Acceleration 0-200 km/h (0-124 mph): 8.9 seconds
0-124-0 mph: 13.7 sec
Top Speed: 390+ km/h (245+ mph) (estimated)
Lateral G-force: 1.6 G


Type: Specially developed transversal transmission with paddle-shift
Differential: Torque sensitive limited slip differential or optional Electronic differential Clutch: Dual Plate, Ø 9.4 inches
Drive: Rear wheel


Front Brake Discs: Ventilated ceramic discs Ø 15.4 inches, 1.4 inches wide
Front Calipers: 6-piston, power-assisted
Rear Brake Discs: Ventilated ceramic discs Ø 15 inches 1.3 inches wide
Rear Calipers: 6-piston, power-assisted

Wheels and Tires:

Wheels: Koenigsegg forged Vortex generating aluminum wheels with center locking
Front Wheels: 19” x 9.5”
Rear Wheels: 20” x 12.5”
Tires: Michelin Unidirectional with asymmetric tread pattern
Front Tires: 255/35 – 19” (Y)
Rear Tires: 335/30 – 20” (Y)


Total length: 4293 mm (169”)
Total width: 1996 mm (78.6”)
Total height: 1120 mm (44.1”)
Ground clearance:
Rear: 100 mm (3.94”) Front: 100 mm (3.94”)
Fuel capacity: 70 liters (18.5 US gallons)
Luggage compartment: 120 liters (31.7 US gallons)
Dry weight: 1290 kg (2832 lbs)


Cd: 0.35
Total Downforce at 155 mph: 660 lbs
Underside: Flat underside of chassis, Venturi tunnels at rear of chassis/body.


Chassis: Carbon fiber with aluminum honeycomb and integrated fuel tanks for optimal weight distribution and safety.

Monocoque torsional rigidity: 58,000 nm/degree
Weight including tanks: 158.4 lbs.
Front and rear suspension: Double wishbones, two-way adjustable VPS gas-hydraulic shock absorbers, pushrod operated, electronically adjustable ride height.
Front: Cro-Mo subframe, with integrated crash members.
Rear: Semi-stressed engine and gearbox with support struts, for Needle bearings and o-ringed wishbone bushings optimal rigidity and no engine inertia movements.

-Fully machined aircraft aluminum uprights, with SKF LeMans specification 150mm angle contact ball bearings.
-GKN hollow/gun-drilled driveshafts.
-Koenigsegg Z-style progressive and lightweight anti-roll bars front and rear.


Two-door, two seater with removable hardtop stowable under the front hood lid. Body made from pre-impregnated carbon fiber/kevlar and lightweight sandwich reinforcements. Carbon vents over wheels

Electrical System Solid state digital semi-conductors – no fuses or relays. Can bus operated and fully programmable functionality.


Dual Airbags, detachable storable hardtop with glass roof, power windows, rear wing, adjustable pedals and steering column, Agera Stitching, Adjustable seats in rake and length, carbon ceramic brakes with

Sport ABS, hydraulic lifting system, power steering, power brakes, extra 4-point seatbelts for track use.

Satnav, MP3 Player, USB connection, climate control, digital warning and info system, G sensor, alarm, tire monitoring system, silver key, leather carpets, roof stowage, bag, car cover.

Extra Equipment:

Fitted luggage, special leather and color requests, Inconell exhaust system, Completely Clear coated Carbon fiber body, Electronic differential (E-diff), robotized rear wing, Front winglets, rear parking sensors.

2-Year Warranty. All information correct at time of printing, and subject to change.

Koenigsegg Agera Gallery

Source: Koenigsegg
